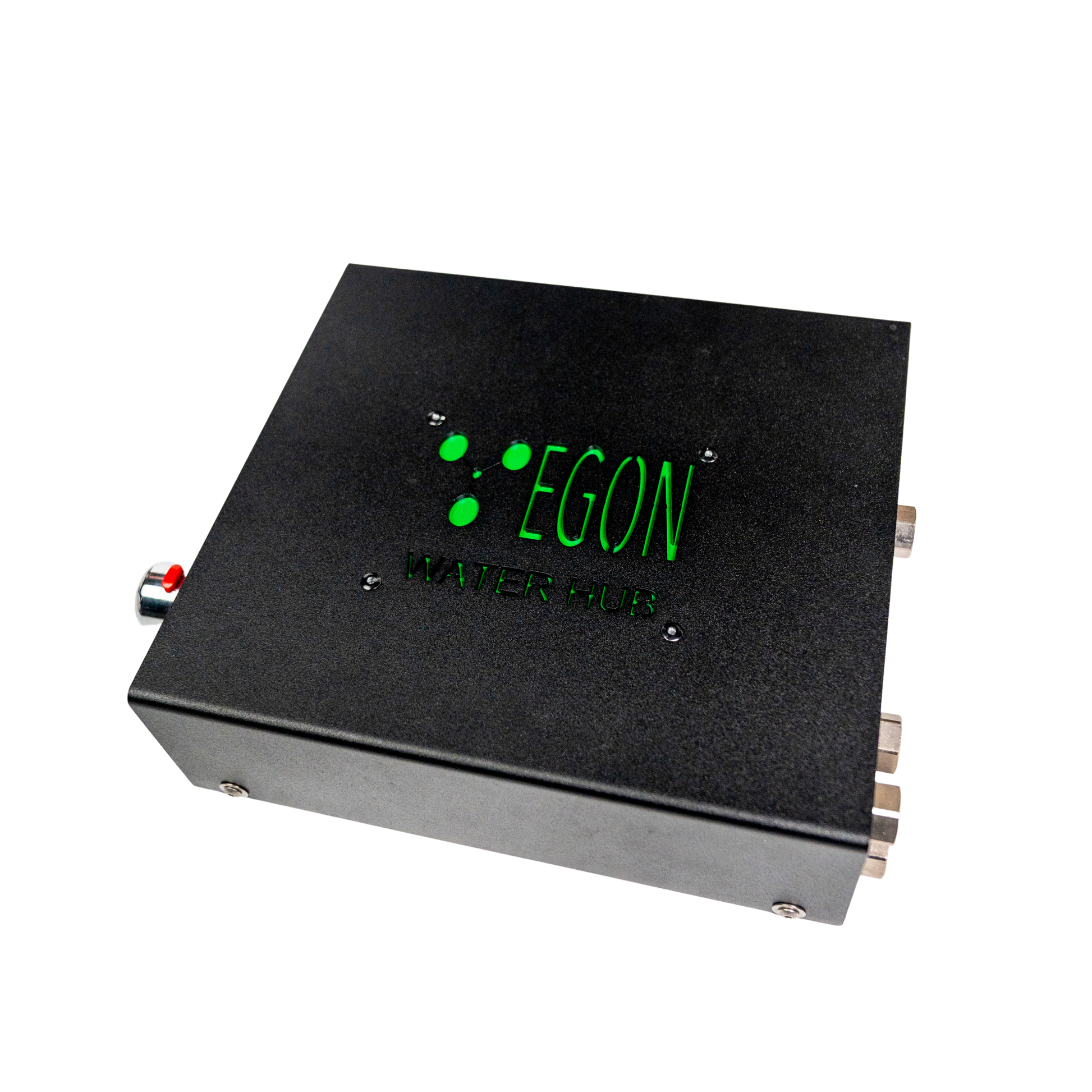

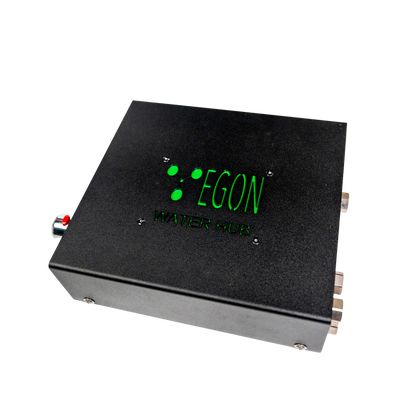

• Egon Water-Hub

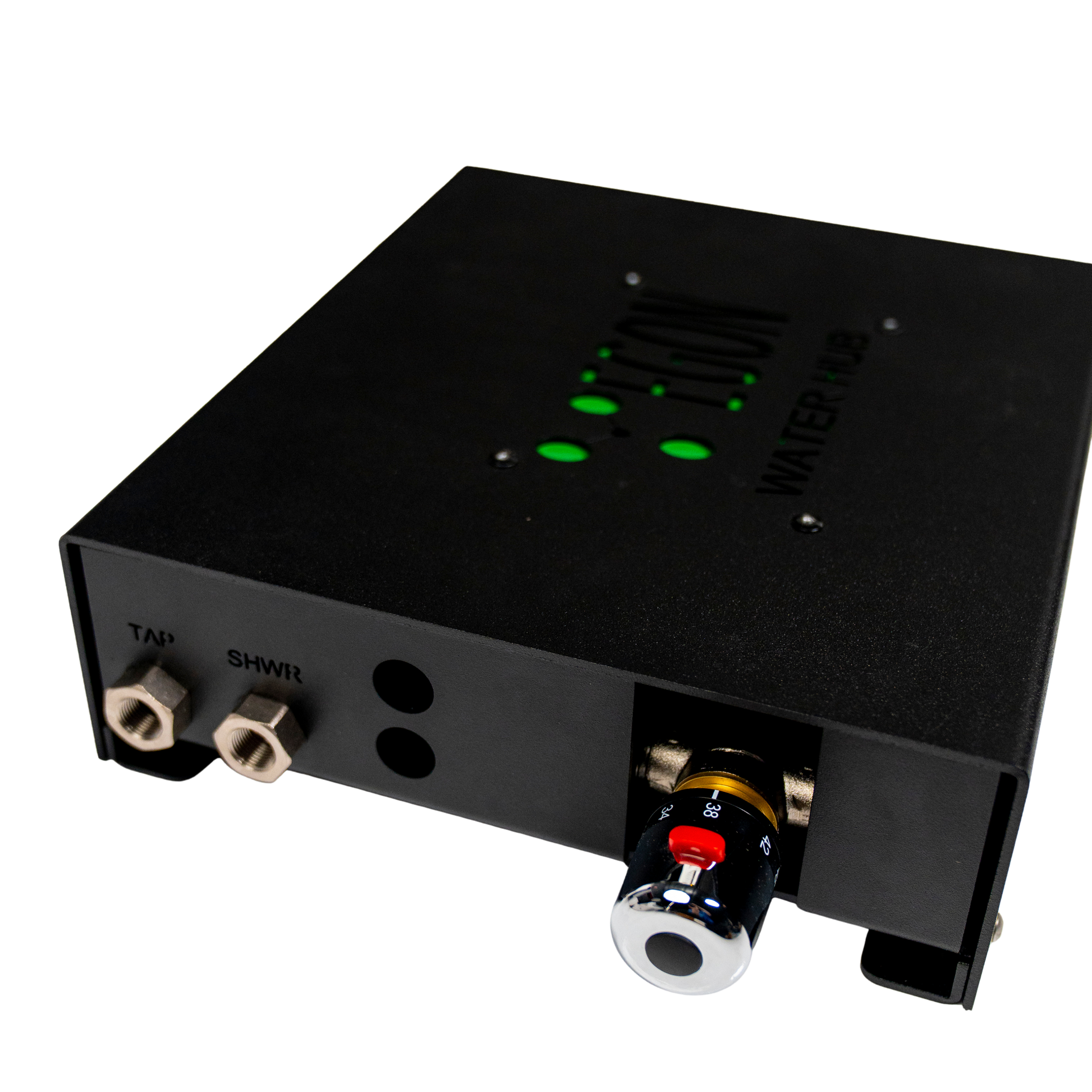

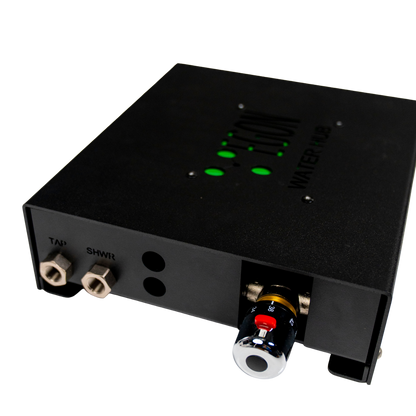

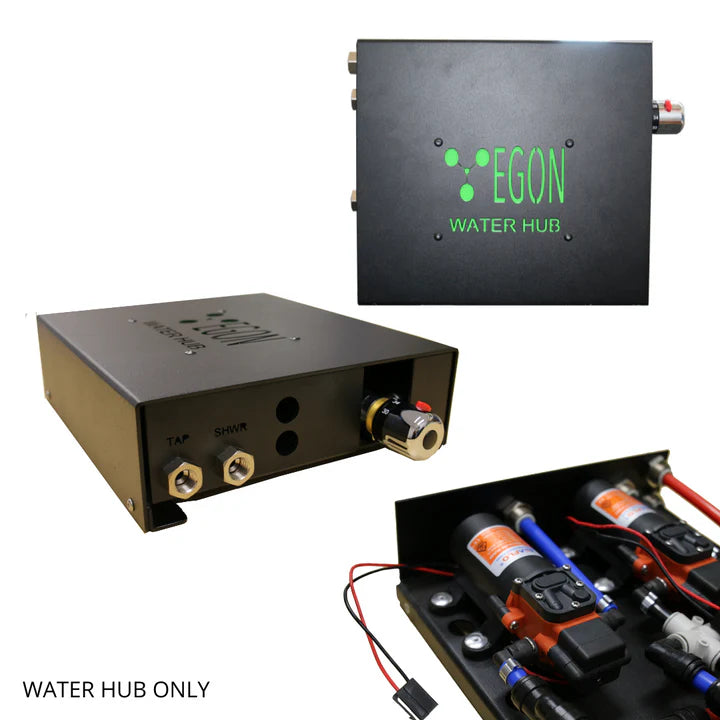

  • Egon Water-Hub Front with Temperature Controller

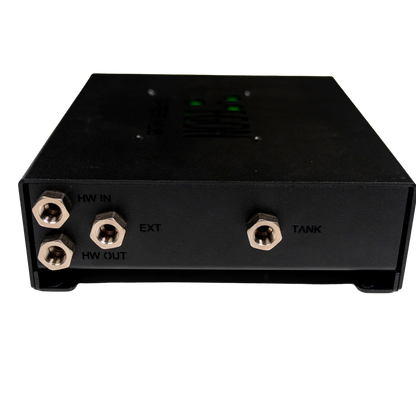

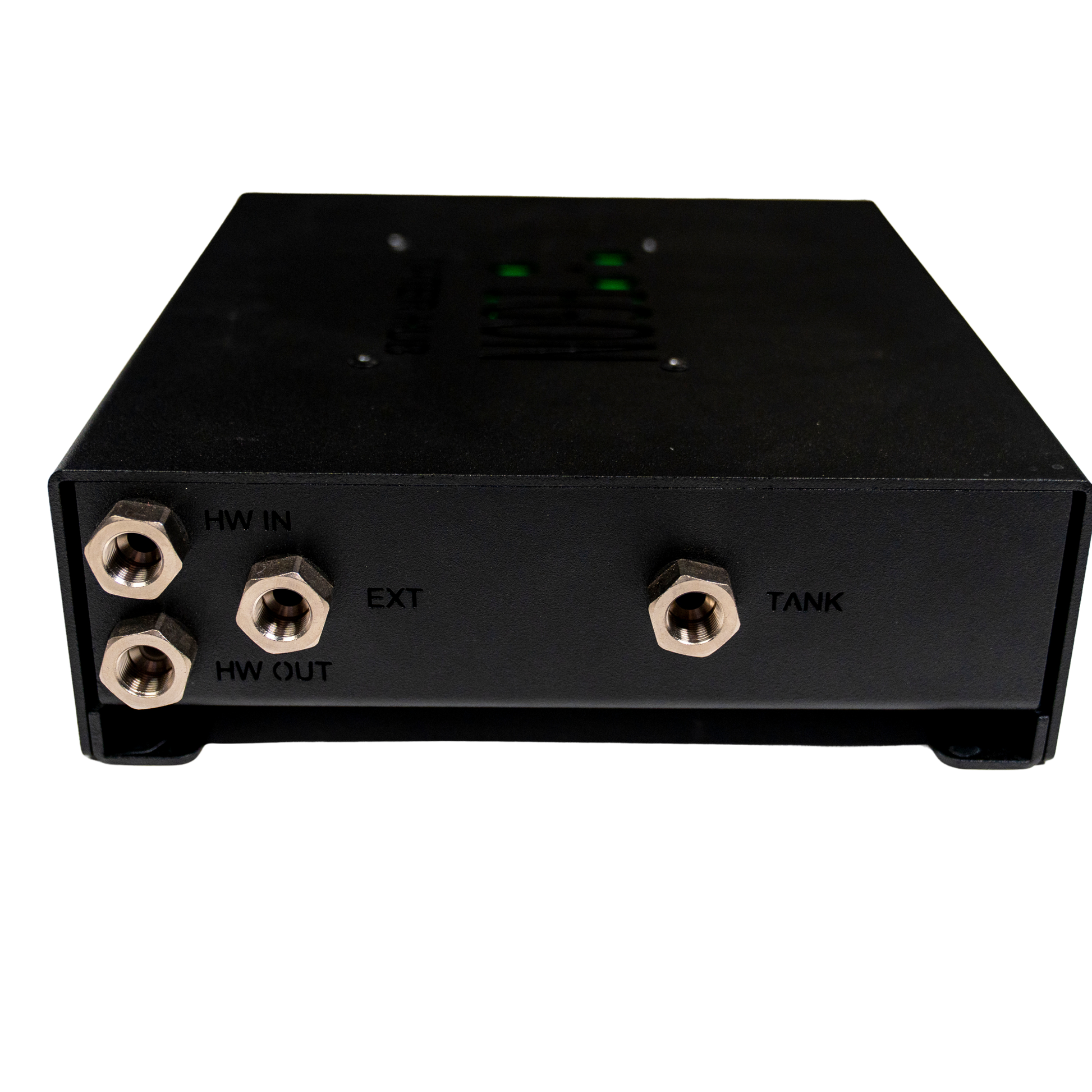

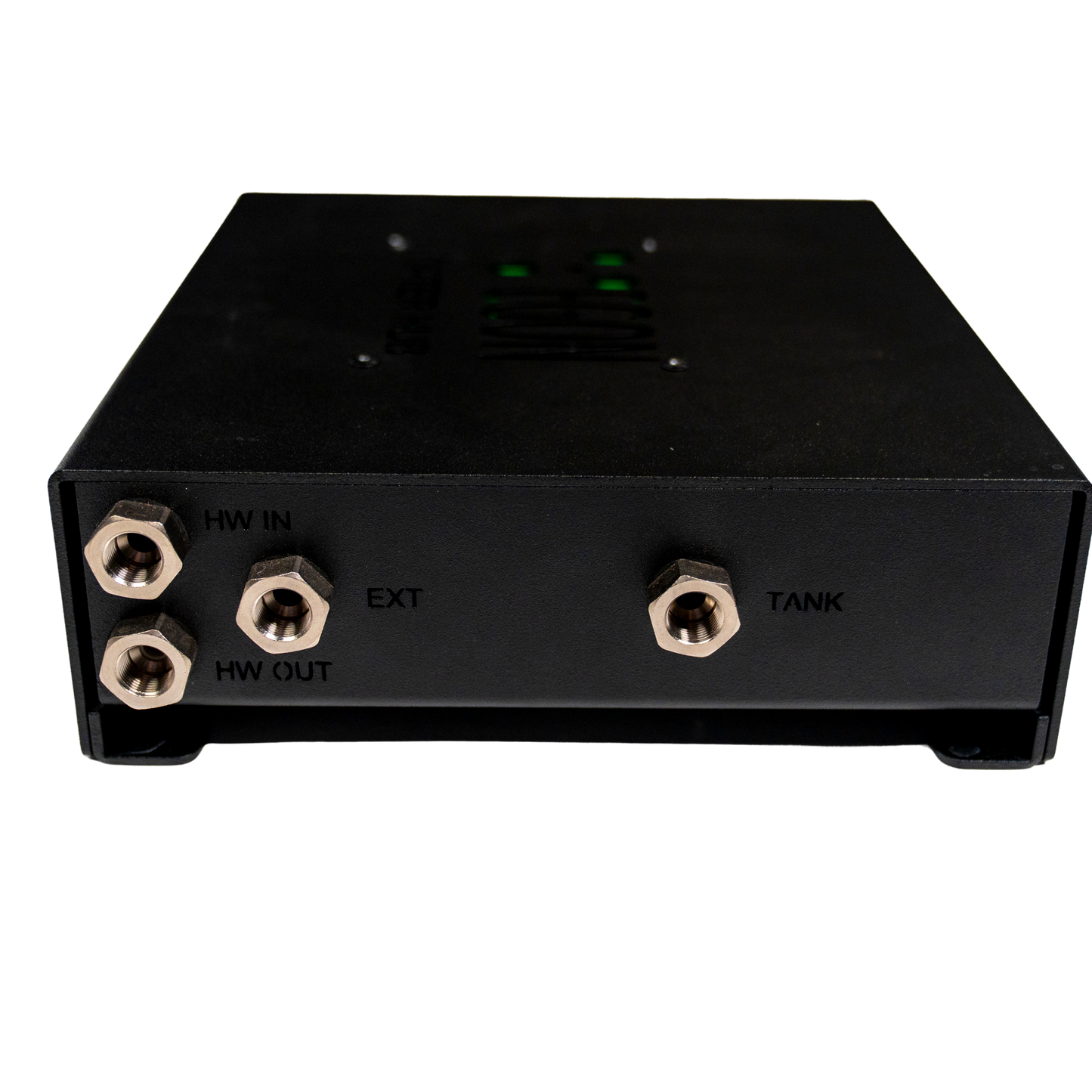

  • Egon Water-Hub Rear Connections

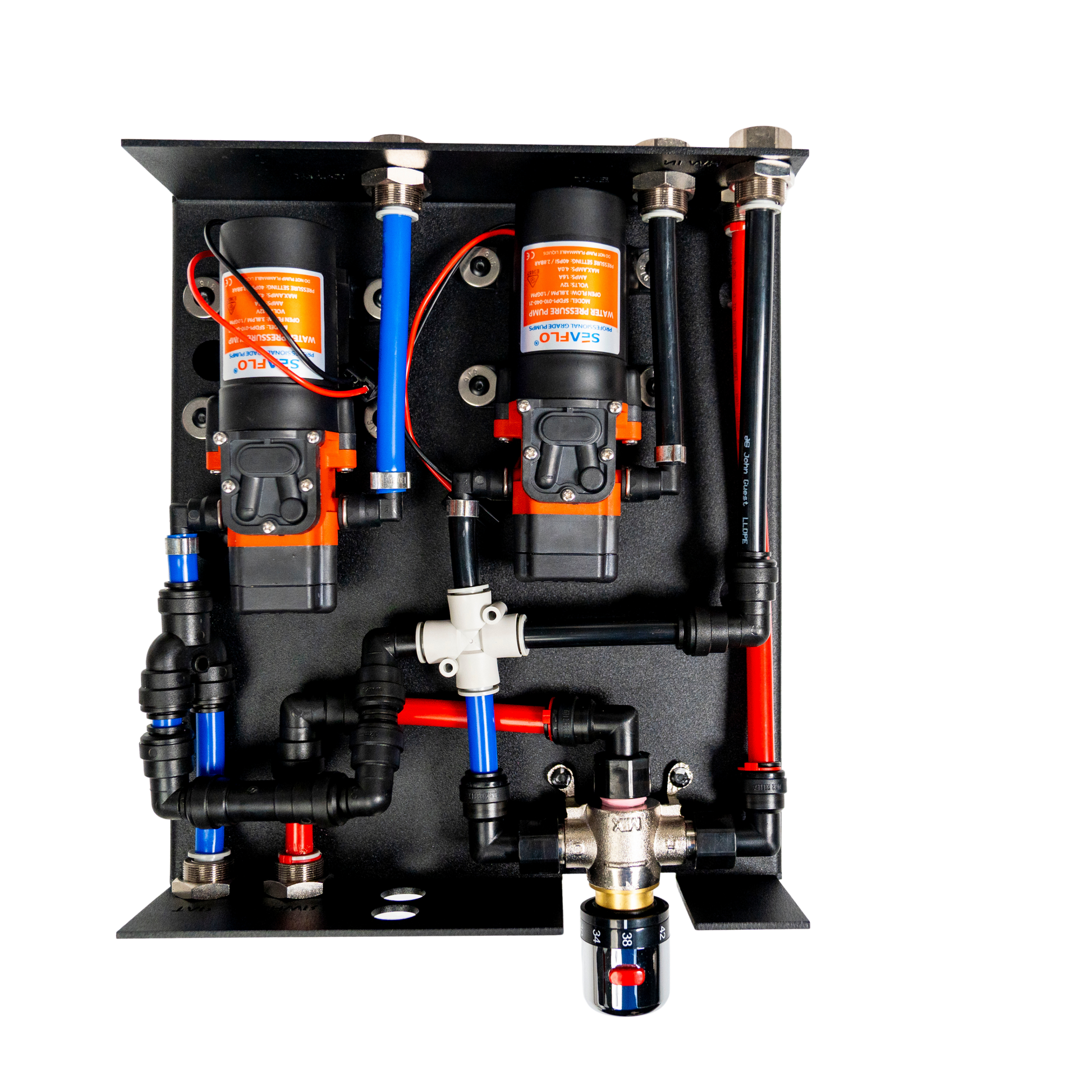

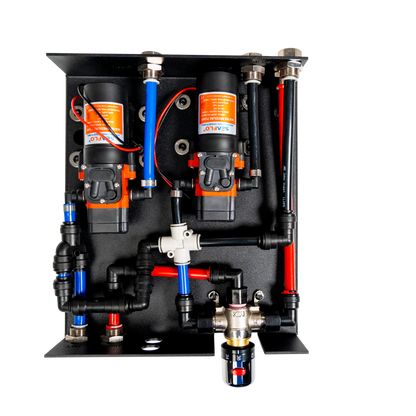

  • Egon Water-Hub internal view of pumps and piping
  • Egon Water Hub packaging with diagram and branding on a white background

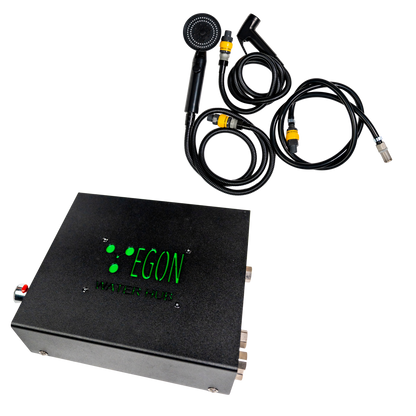

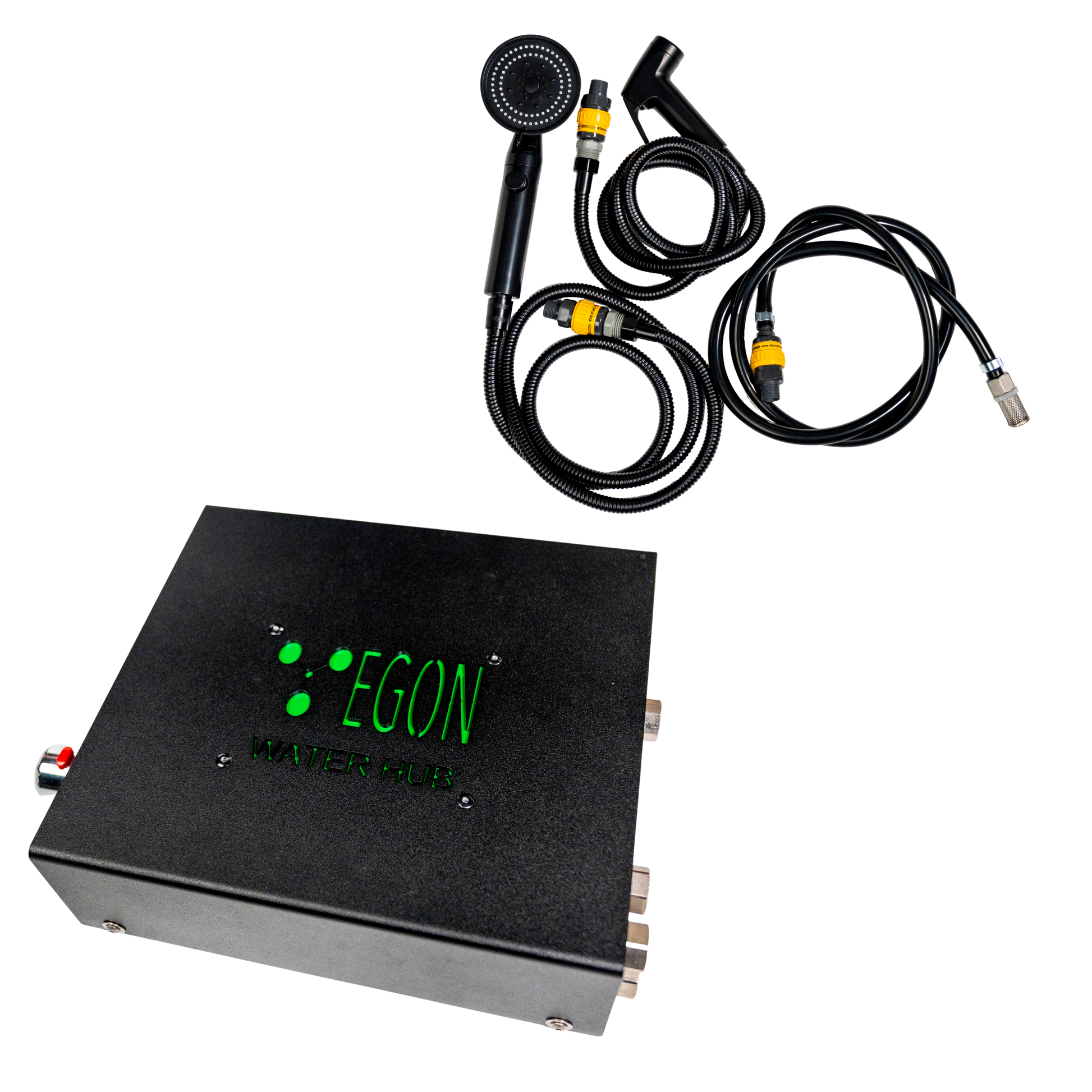

  • Egon Water-Hub with Hose Kit

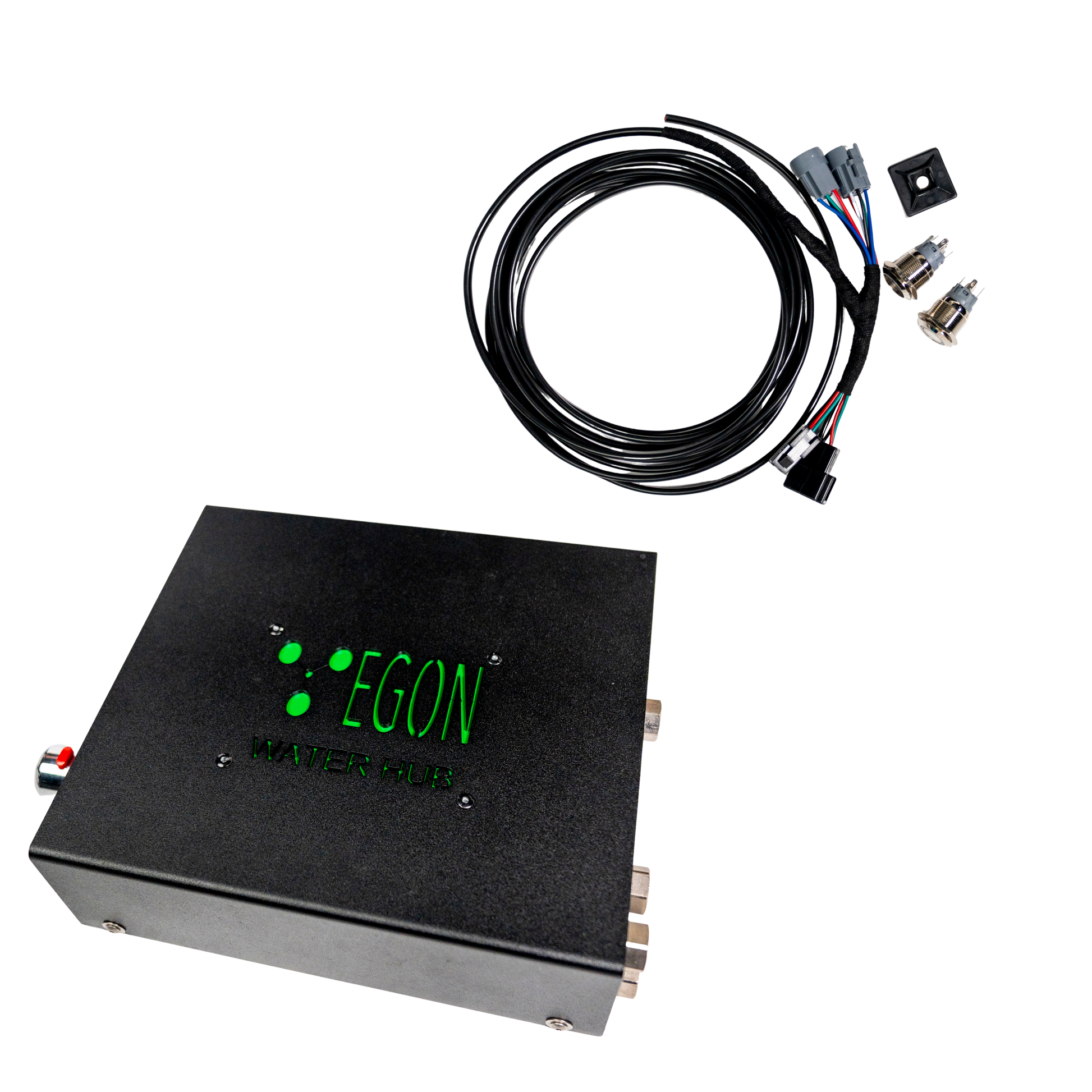

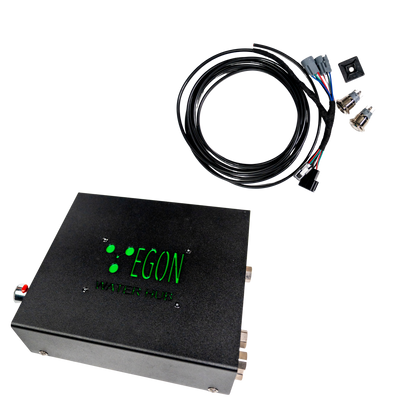

  • Egon Water-Hub with Electric Connection Kit

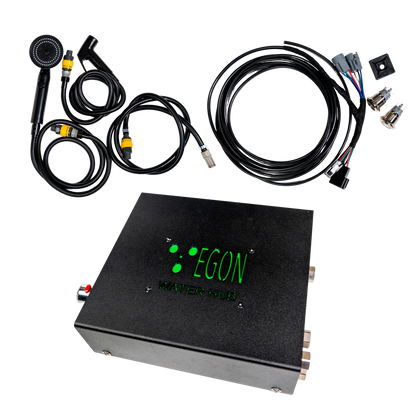

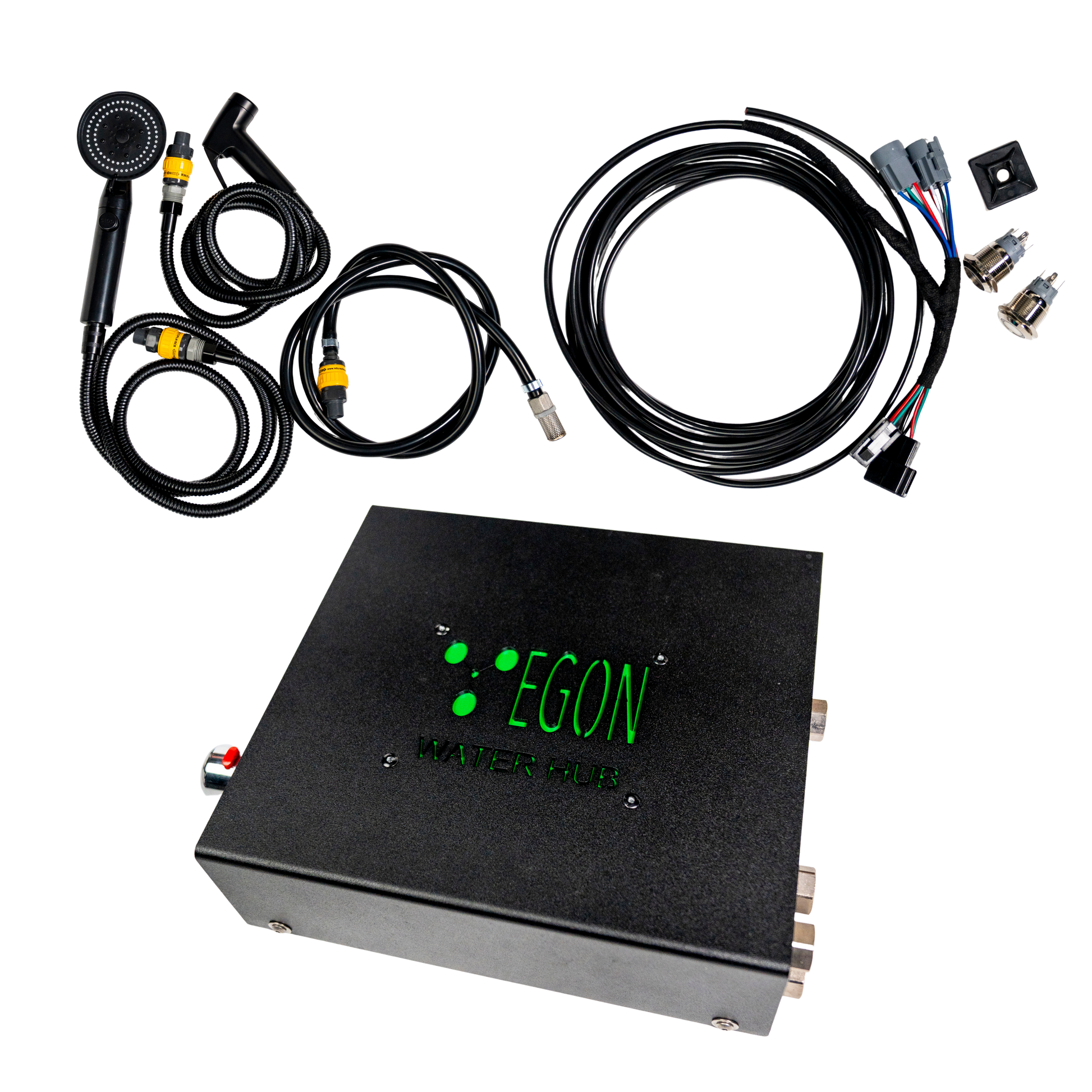

  • Egon Water-Hub with Hose Kit and Electric Connection Kit
1 8

Egon

EGON WATER-HUB 2.0

EGON WATER-HUB 2.0

$1,378.00 AUD
$1,378.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product Details

The EGON Water-Hub is the all-in-one, plug-and-play solution for hot and cold-water distribution. It eliminates complex plumbing and specialist labour by centralising multiple inlets and outlets into one compact unit that works with any water heater. Designed for caravans, 4WDs, boats, overlanders, campers, and off-grid homes, it delivers clean, reliable water supply faster and more cost effectively than traditional plumbing setups.

View full details

Features

  • Fast Installation: Plug-and-play design cuts setup time and removes the need for specialist plumbing skills.
  • Versatile Water Management: Supports hot and cold supply, clean drinking water, multiple inputs, and safe grey water handling.
  • Grey Water Safety: Failsafe design prevents contamination from grey water sources.
  • Smart Temperature Control: Minimises waste as hot water is automatically kept at desired temperature.

What’s Included

  • 1 × EGON Water-Hub unit
  • 2 × QK Series connector sets (1 per pump, each set includes 1 male and 1 female)

What You’ll Need

  • Plumbing Fittings: Standard 3/8 BSP plumbing fittings (hoses, taps, showerheads, etc.)
  • Connectors: QK Series 2-Way Connectors (if Electric Connection Kit not purchased)
  • Optional: EGON Electric Connection Kit (2 × LED switches + 4 m power cable)
  • Optional: EGON Water-Hub Hose Kit (quick-connect fittings, showerhead hose, drinking water hose, external pickup hose with mesh filter)
Overview

Features

  • Fast Installation: Plug-and-play design cuts setup time and removes the need for specialist plumbing skills.
  • Versatile Water Management: Supports hot and cold supply, clean drinking water, multiple inputs, and safe grey water handling.
  • Grey Water Safety: Failsafe design prevents contamination from grey water sources.
  • Smart Temperature Control: Minimises waste as hot water is automatically kept at desired temperature.

What’s Included

  • 1 × EGON Water-Hub unit
  • 2 × QK Series connector sets (1 per pump, each set includes 1 male and 1 female)

What You’ll Need

  • Plumbing Fittings: Standard 3/8 BSP plumbing fittings (hoses, taps, showerheads, etc.)
  • Connectors: QK Series 2-Way Connectors (if Electric Connection Kit not purchased)
  • Optional: EGON Electric Connection Kit (2 × LED switches + 4 m power cable)
  • Optional: EGON Water-Hub Hose Kit (quick-connect fittings, showerhead hose, drinking water hose, external pickup hose with mesh filter)
Specifications

Inputs

Drinking Water Tank Input (Fresh Water) x1
External Pickup Input (Grey Water) x1
Water Heater Cold Supply x1
Water Heater Hot Return x1

Outputs

Tap Outlet Drinking water tank outlet (cold)
Shower Outlet External pickup + water heater (hot or cold)

Other

Power Twin 12V pumps (switched supply)
Contamination Protection One-way valve
Dimensions (Product) 10 × 38 × 30 cm (H × L × W)
Dimensions (Packaged) 12 × 41 × 32 cm (H × L × W)
Warranty 2 years
Installation

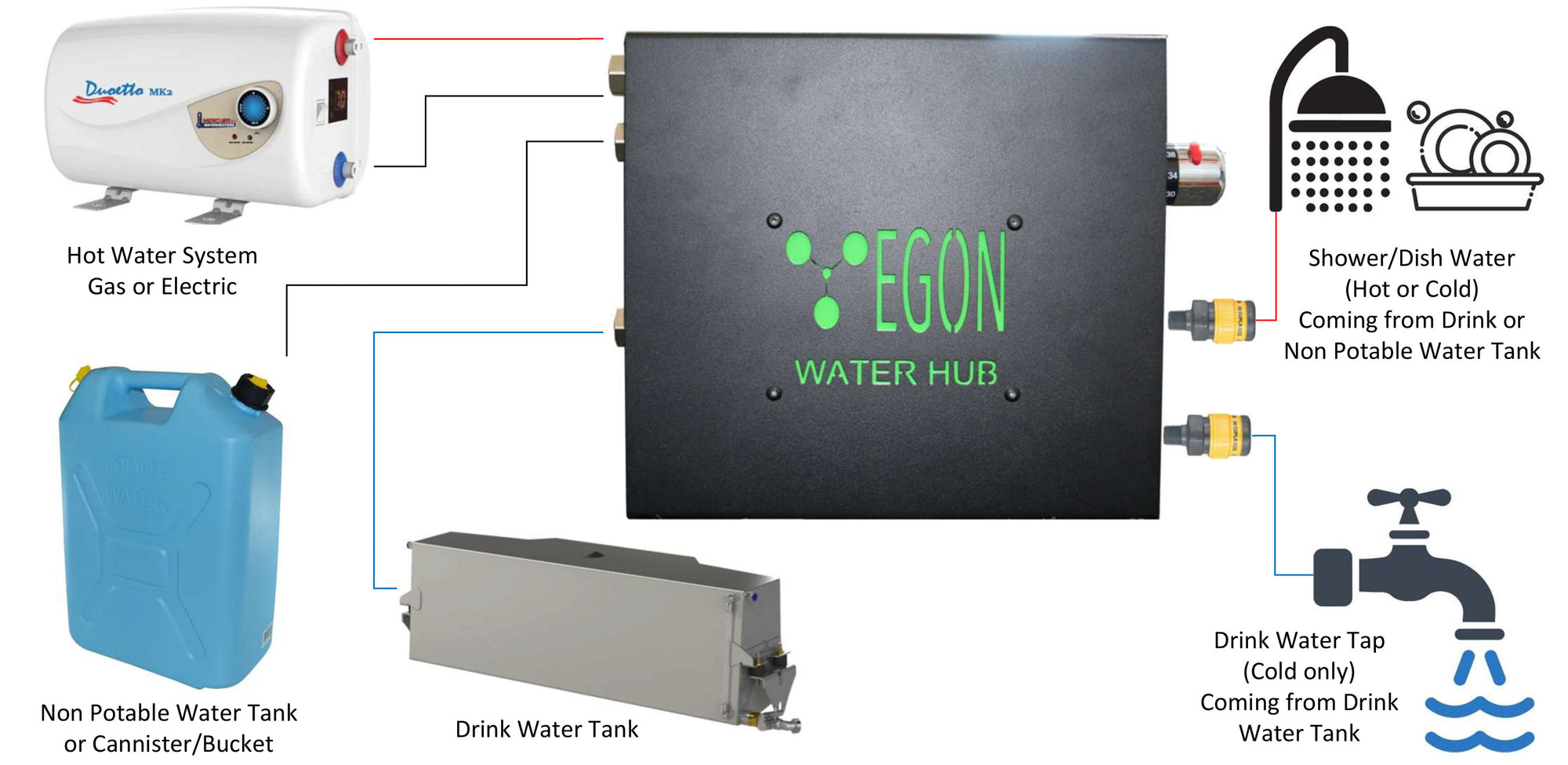

Water-Hub Connection Diagram

Connection diagram of the EGON Water-Hub showing inputs from a drinking water tank and a non-potable water tank, with an optional gas or electric hot water system. Outputs include a shower/dish outlet with hot or cold supply, and a drinking water tap that is supplied only from the drinking water tank.

This example shows the Water-Hub connected to drinking and non-potable water tanks with an optional hot water system, supplying a shower/dish outlet and a drinking water tap fed only from the drinking water tank.

View Full Installation Guide

Plumb the two water source inputs: the drinking water tank and the external pickup. Connect the water heater using HW OUT (cold feed) and HW IN (hot return). Attach the outlets: the tap (cold only, from the tank) and the shower (hot or cold via the mixing valve, from the external pickup and heater). Connect a 12V power supply. The hub uses two pumps, each with its own switch,  one for the tank and one for the external pickup. Operate the outlets directly via taps. Pumps turn on and off automatically through an inbuilt pressure switch.

The Drink Water or Fresh Water tank feeds both the Tap and the Shower Outlet while the Grey Water tank only feeds the Shower Outlet.

Resources
Egon Water-Hub Installation and Operations Manual
Water-Hub Installation Guide (online)
EGON YouTube Channel (videos)
FAQs
What connections come standard with the Water-Hub?

Each pump includes one male and one female QK Series connector for straightforward connections.

Can I use my own connectors instead of the supplied ones?

Yes, the fitted connectors can be removed and replaced with alternatives of your choice or hardwired.

Does the Water-Hub come with switches?

The base unit does not include switches. The optional Electric Connection Kit provides 2 LED on/off switches with a 4m cable. The switch kit is optional in case you want to do your own wiring with switches that are not located in the hub itself. That way you can run a switched power supply to each pump.

What does the Electric Connection Kit do?

Each switch harness connects to a pump, allowing you to turn each on/off independently.

Is there a Hose Kit available?

Yes, the optional Water-Hub Hose Kit includes:

  • Three Quick-Connect fittings
  • Showerhead and hose
  • Drinking water hose with tap connection
  • External pickup hose with mesh filter

What connections come standard with the Water-Hub?

Each pump includes one male and one female QK Series connector for straightforward connections.

Can I use my own connectors instead of the supplied ones?

Yes, the fitted connectors can be removed and replaced with alternatives of your choice or hardwired.

Does the Water-Hub come with switches?

The base unit does not include switches. The optional Electric Connection Kit provides 2 LED on/off switches with a 4m cable. The switch kit is optional in case you want to do your own wiring with switches that are not located in the hub itself. That way you can run a switched power supply to each pump.

What does the Electric Connection Kit do?

Each switch harness connects to a pump, allowing you to turn each on/off independently.

Is there a Hose Kit available?

Yes, the optional Water-Hub Hose Kit includes:

  • Three Quick-Connect fittings
  • Showerhead and hose
  • Drinking water hose with tap connection
  • External pickup hose with mesh filter

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
b
billy
Water Hub 2.0

The concept is great, the design needs improvement for the price you pay. Hot water was not routed into the proper mixing valve location with in the unit. One of the cheap plastic 90 degree john guest fittings leaked so replaced with higher quality brass fitting. Again the concept is great, and once working its good, the quality needs improvement for the price.

Hi Billy, thank you for your honest feedback. We had a batch in our production in which the hot water in and out were switched around and it slipped our attention at quality control. My apologies that this unit made it out to you with a wrongly routed pipe and a leaking fitting. We have implemented more quality control around this issue and have reviewed our choice of fittings. Thank you for helping us improve!
