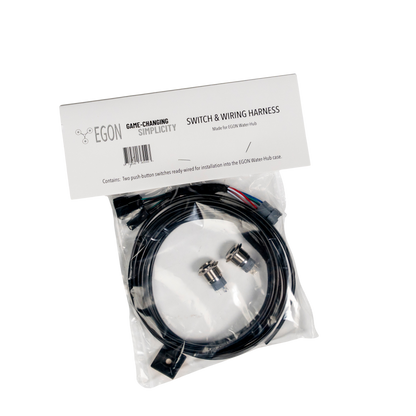

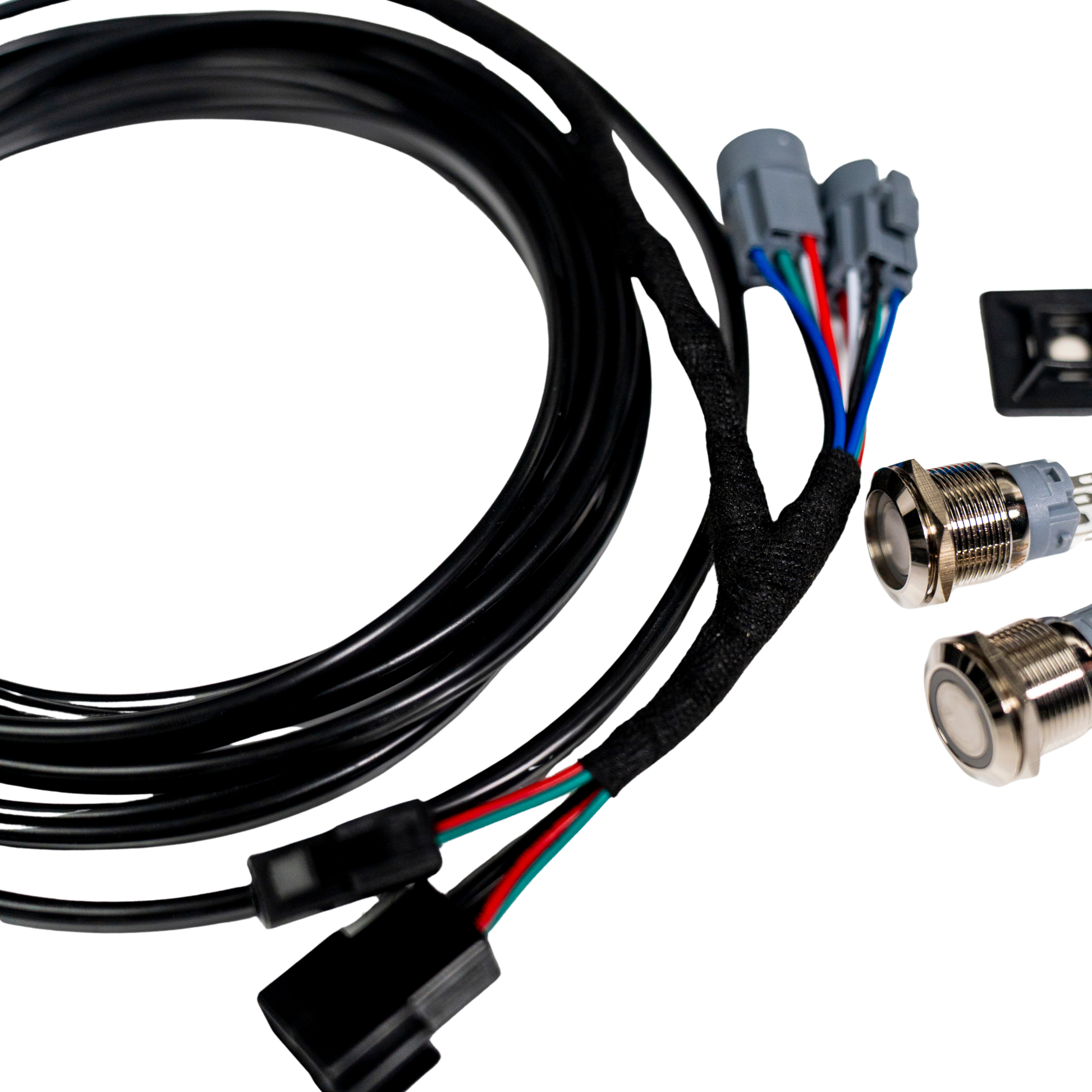

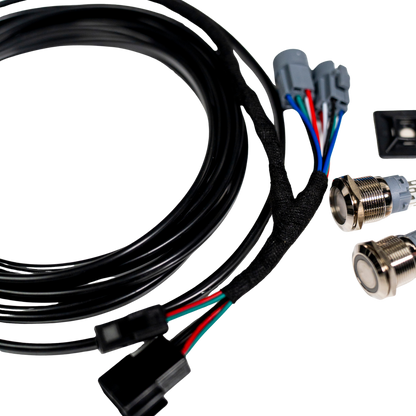

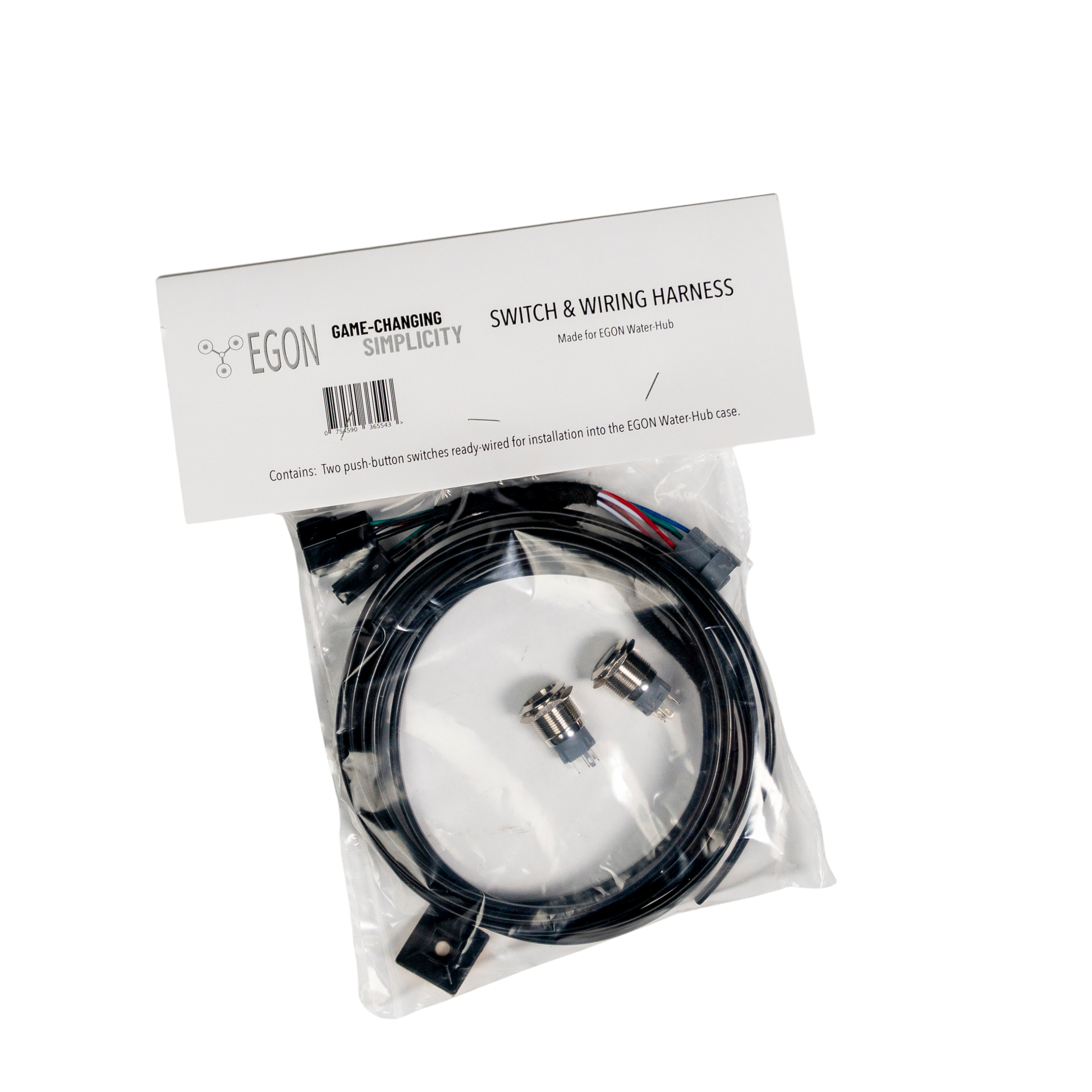

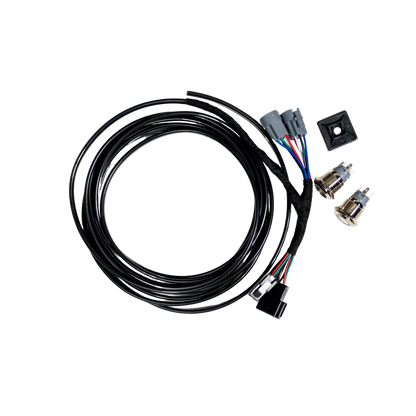

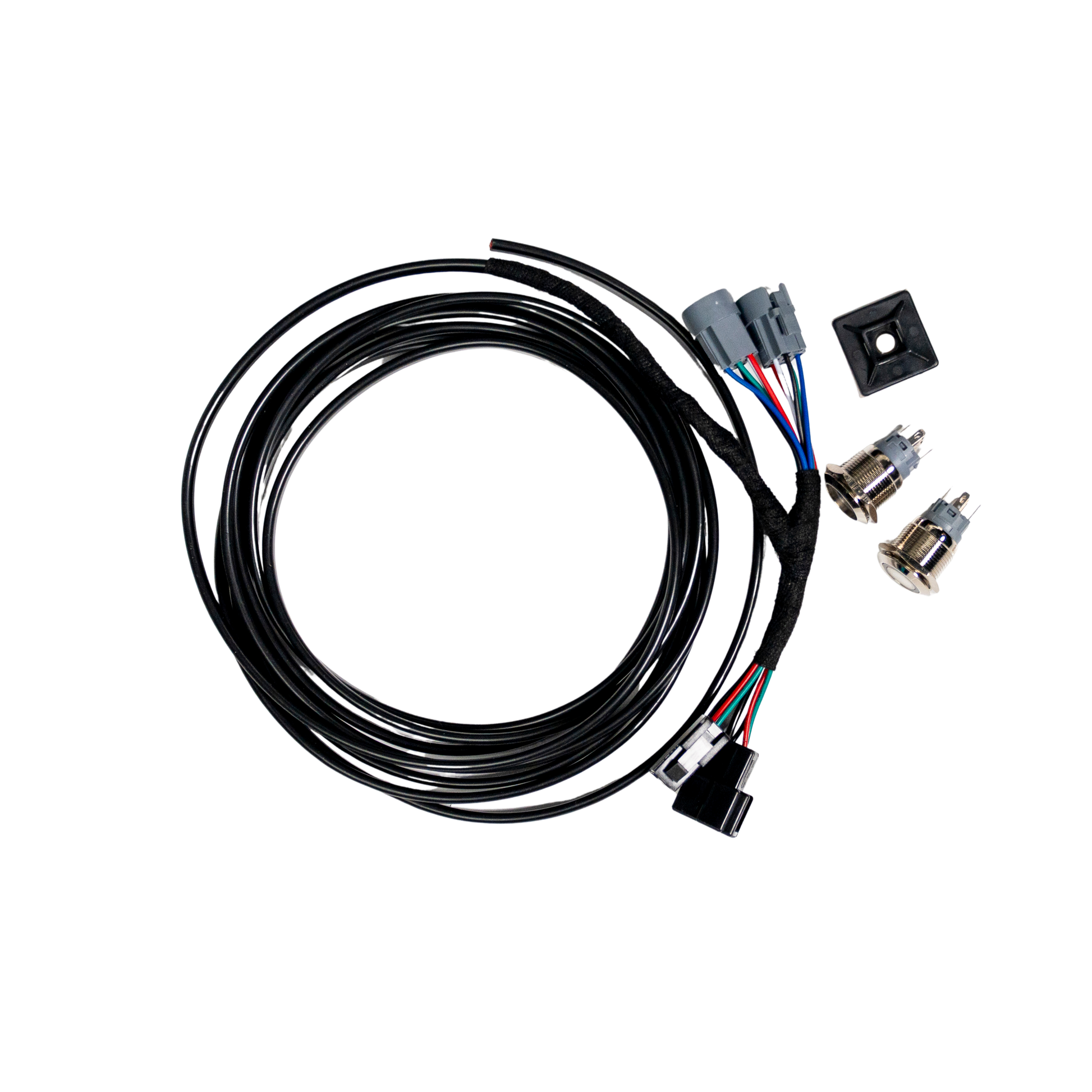

EGON WATER-HUB ELECTRIC CONNECTION KIT

The EGON Water-Hub Electric Connection Kit is a purpose-built accessory specifically designed for the EGON Water-Hub. This kit provides control over the hub's pumps, making it easy to manage water flow in your 4WD, RV, boat, or off-grid setup. With two pre-configured switches designed to fit directly into the Water-Hub’s front panel using the provided cutouts, it ensures a clean and integrated setup.

Features

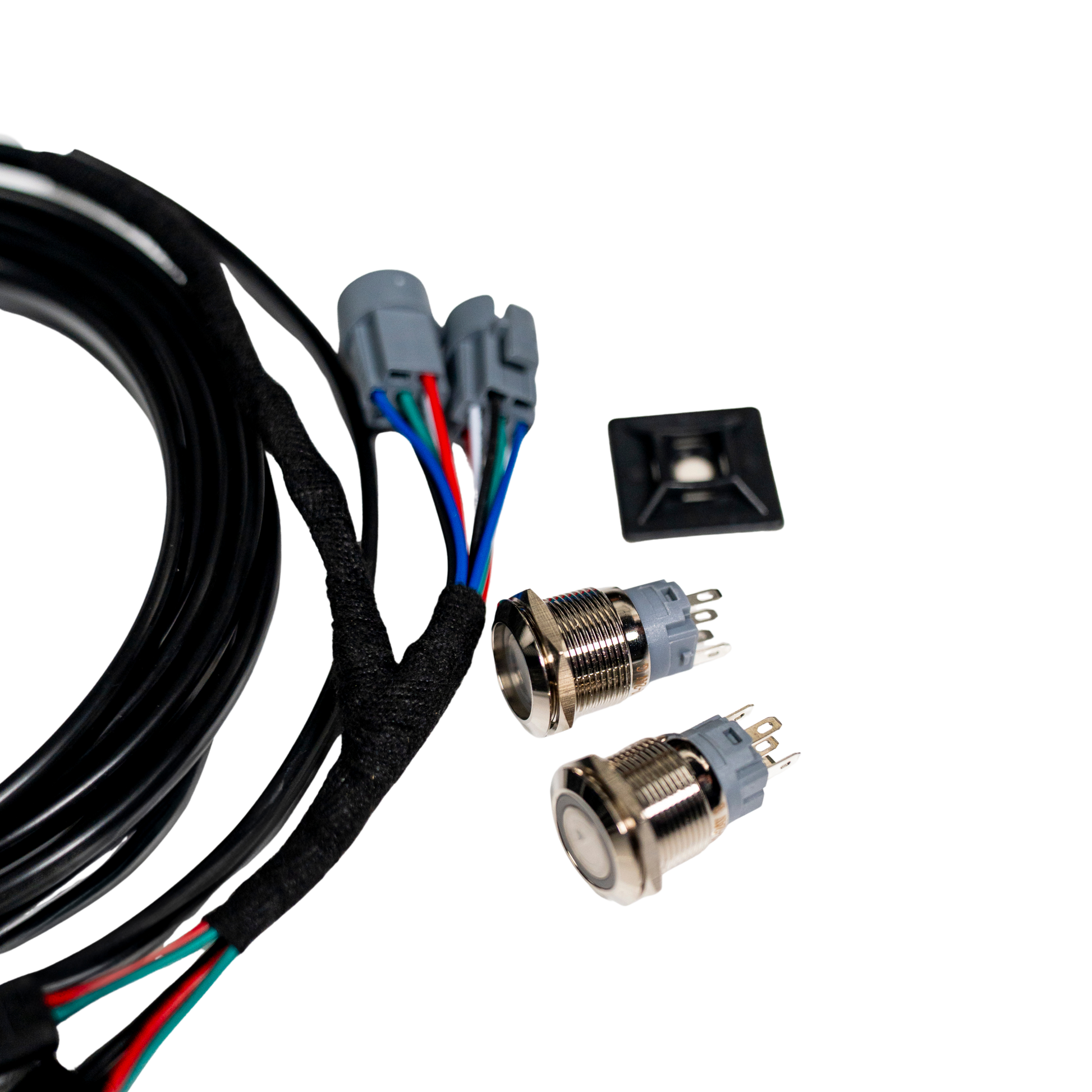

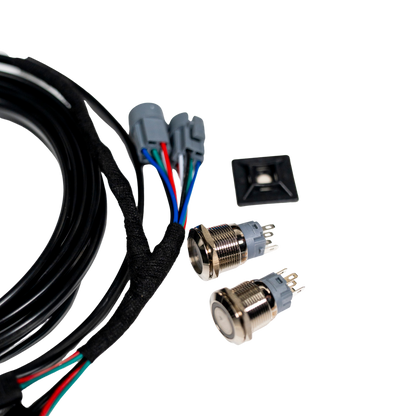

• Push-Button Switches with LED Indicators: Includes 2 premium metal on/off switches, each featuring an LED indicator for clear visibility.
  • Blue LED Switch: Activates the tank water pump.
  • Green LED Switch: Activates the external pick-up pump.
• 4-Metre Connection Cable: Provides ample length to connect to a 15A 12V DC power source.

Specifications

Packaged Dimensions:

• Height: 4 cm

• Length: 22 cm

• Width: 14 cm

Product Dimensions:

• Height: 4 cm

• Length: 22 cm

• Width: 14 cm

Warranty: 2 years

Compatibility

• This kit is specifically designed for use with the EGON Water-Hub.

Connections

The EGON Water-Hub comes standard with QK Series connectors for each pump—one male and one female—for straightforward, reliable connections. If you’re purchasing the Water-Hub without the Electric Connection Kit, you’ll need QK Series 2-Way Connectors.

Alternatively, you can remove the connectors attached to the Water-Hub and replace them with ones of your choosing.

Installation Made Easy

• Insert the switches into the Water-Hub’s front panel using the pre-cut holes.

• Plug the pre-wired harness connectors into the corresponding pumps (tank and external pickup).

• Connect the 4-metre cable to a 12V DC power source, fused at 15A for safe operation.

With its durable components and seamless integration, the EGON Water-Hub Electric Connection Kit is the perfect accessory to maximise the potential of your EGON Water-Hub.
