48V DC/DC Converter
48V DC/DC Converter
Couldn't load pickup availability
The EGON 48V DC/DC Converter is designed for use within the EGON 48V system and is available in two conversion options, depending on the output required for your setup. It has a unique in-built trigger cable controlled from the EGON 48V-Hub.

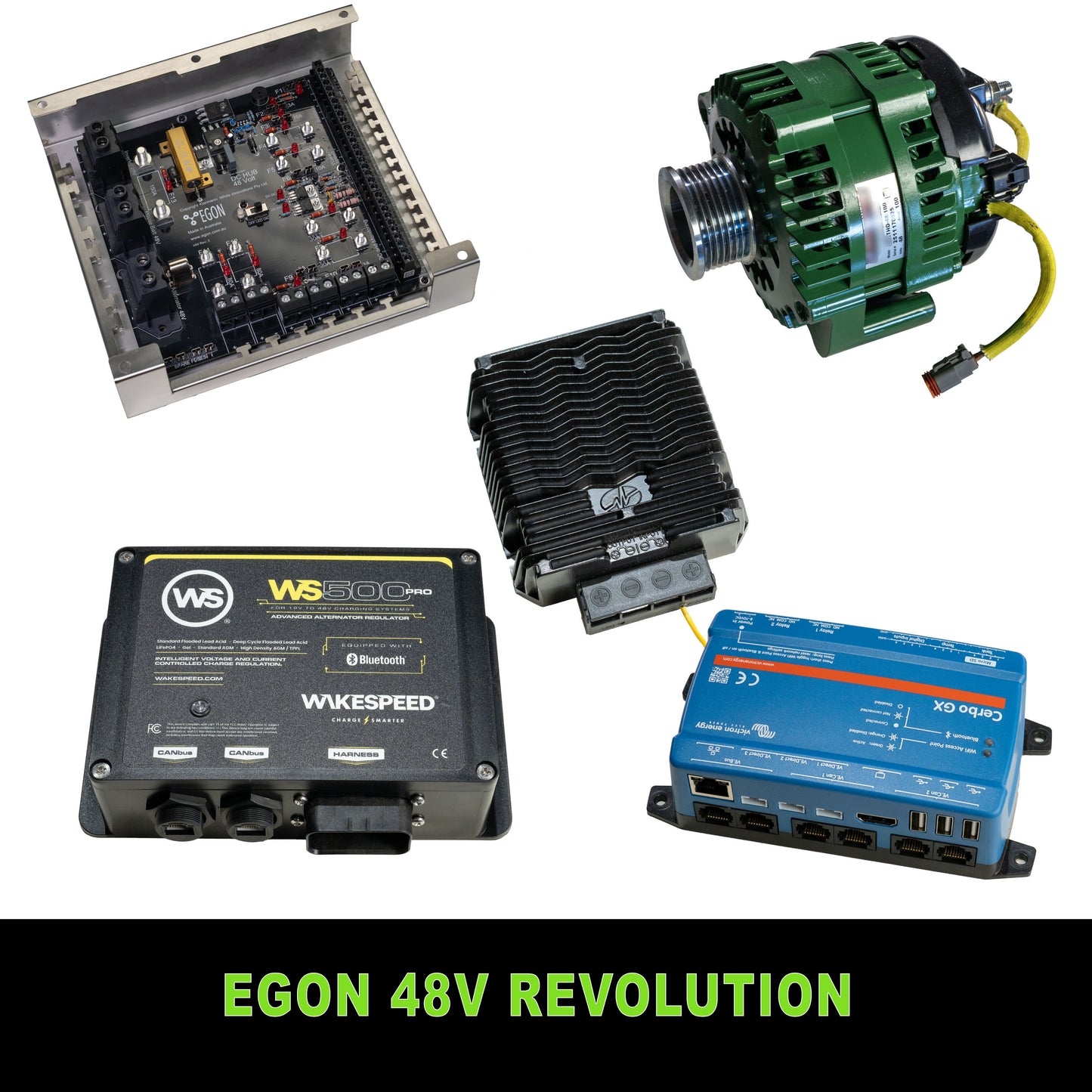

TO BUILD an operational 48V system you will need the following products. In this list, only the alternator and battery are optional should you prefer to source them elsewhere. Other branded DC-DC converters or alternator controllers are NOT compatible with the Egon 48V hub.
- Egon 48V Hub. BUY NOW
- 48V Alternator. SELECT ONE HERE
- 48V DC-DC Converter. YOU'LL NEED TWO
- Alternator Control kit. BUY NOW
-
48V battery. BUY NOW
DC-DC Converters. Available Variants
This product is available in the following variants:
- EGON DC/DC Converter - 48V to 12V
- EGON DC/DC Converter - 48V to 24V
Overview
The EGON 48V DC/DC Converter provides DC/DC conversion from a 48V system to either 12V or 24V, depending on the selected variant.
Variant Specifications
EGON DC/DC Converter - 48V to 12V
- Input voltage: 30–60V
- Output voltage: 13.8V
- Continuous output current: 100A
- Activation: 30–60V activation signal via yellow cable input
- Dimensions: 140 x 120 x 42.5 mm
- Weight: ≤ 1.2 kg
EGON DC/DC Converter - 48V to 24V
- Input voltage: 30–60V
- Output voltage: 27.6V
- Continuous output current: 70A
- Activation: 30–60V activation signal via yellow cable input
- Dimensions: 140 x 120 x 42.5 mm
- Weight: ≤ 1.2 kg
Important Information
This product is part of the EGON 48V system and should be selected based on the required output for the wider system design.
Shipping & Availability
Available worldwide.
Related 48V System Components
This converter is one part of the EGON 48V system. Depending on your setup, you may also need:
You might need two of these
Most set-ups require two of these converters, one to feed the vehicle its charge current and a second to feed a 12V system in the camper/4x4/living quarters should you have one. Both connect directly to the EGON Hub 48V.
