EGON DC-Hub 48V

Name: EGON DC-Hub 48V
Brand: Egon
SKU: DCHUB48VOLT
Price: 2349.00 AUD
Availability: InStock

$2,349.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

The heart of the 48V revolution.

Using tried and tested EGON circuit board based power distribution, the Hub 48V is engineered to connect all major components including controllers, batteries, dc-converters, inverter, alternator and solar all to one central unit with in-built surge (load dump) protection.

Do you want charge rates so high that shore power becomes a thing of the past? This isn't hype. It's a fact. And it cannot be done with 12V because physics prevents it.

TO BUILD an operational 48V system you will need the following products. In this list, only the alternator and battery are optional should you prefer to source them elsewhere. Other branded DC-DC converters or alternator controllers are NOT compatible with the Egon 48V hub.

Egon 48V Hub. BUY NOW
48V Alternator. SELECT ONE HERE
48V DC-DC Converter. YOU'LL NEED TWO
Alternator Control kit. BUY NOW
48V battery. BUY NOW
We do not sell inverters, cabling, fuses etc.

CAN I INSTAL THIS MYSELF?

While installation is literally a matter of following instructions to connect these devices and set-up parameters, all are critical to successful operation. So, if you do not have extensive experience with DC electrics, then do not attempt to install it yourself. Find a qualified workshop to install it for you. It means someone who have extensive experience with DC electrical installations and a proven track record.

While Egon 48V system is far simpler than previous 48V offers, it is considerably more complex than 12V and requires an installer who is good at following precise instructions. Our installation manual contains 26 pages of installation diagrams and set-up data. And it has to be followed to the letter.

While we are doing our best with phone support, we are realising that those with issues are not following the installation instructions step by step. Guessing fails every time.

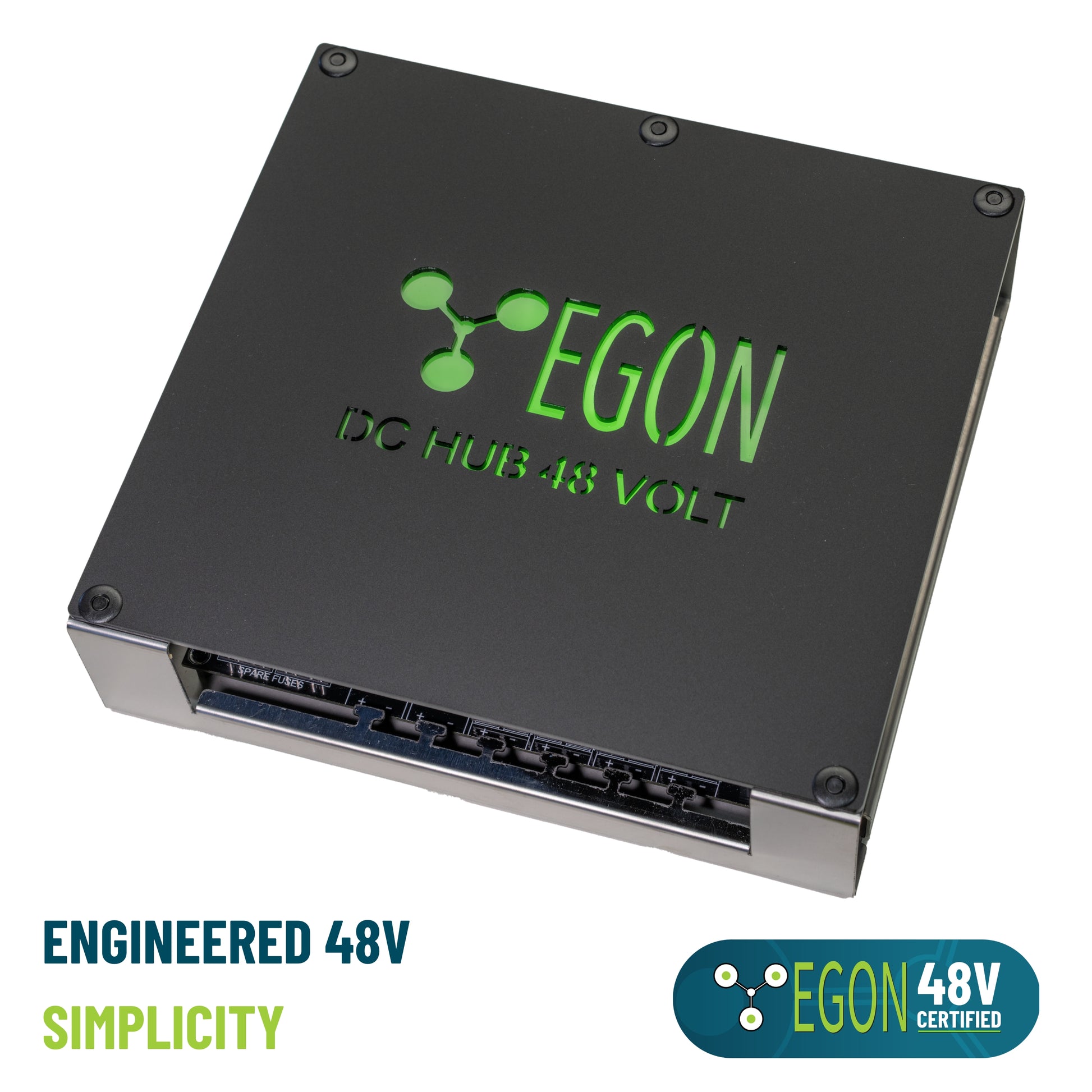

Included in this product is a multi-purpose and extremely rugged protective stainless-steel bracket as seen in illustrations. It can be located in any orientation. (Remove plastic protective cover before use)

We are here to help.

Read the instruction manual cover to cover.
Start your installation page by page.
Do not skip steps!
While Heiner and Andrew are here to help only use support email to ask questions once 103 are done to the letter.

Its an amazing system and there are parts that are new to some. Auto sparkies will figure this out very quickly and we will support anyone wanting to go the 48V route.

ALTERNATOR FOR YOUR ENGINE? PLEASE, BEFORE YOU CONTACT US . . .
95% of the questions received are, "Do you have a 48V alternator for . . . ?"
Please look HERE.

If your vehicle isn't in the list, then we do not have an alternator for you. The list is complete and up to date.

However. These is a solution: Contact RAM AIR in Melbourne and ask them if they have an air-conditioner bracket for your engine, because if they do, our generic 48V alternator will fit your vehicle. PLEASE DO THIS BEFORE CONTACTING US, because all we can do is copy/paste what is written here. Thanks!

(https://www.ramair.com.au/)

View full details

EGON DC-Hub 48V — The Centre of the EGON 48V System

The EGON DC-Hub 48V is the central connection and distribution point for EGON’s 48V vehicle power architecture.

It is designed to bring the major parts of a 48V system together in one organised, protected and repeatable layout — including the 48V alternator, 48V battery, DC/DC converters, control and monitoring components.

Why the DC-Hub 48V Exists

Traditional high-output vehicle power systems can become complex very quickly. Multiple components need to be connected, protected, monitored and serviced correctly.

The DC-Hub 48V is designed to reduce that complexity by giving the system a clear central architecture.

Instead of treating the 48V alternator, battery, DC/DC converters and control components as separate pieces, the DC-Hub 48V brings them together into one logical system.

Built for the EGON 48V Architecture

The DC-Hub 48V is intended to form part of a complete 48V setup.

A functional EGON 48V system will generally require:

- EGON DC-Hub 48V
- Compatible 48V alternator
- 48V battery
- 48V to 12V or 24V DC/DC converter
- Wakespeed / Victron control and monitoring components
- Vehicle-specific fitment parts where required

What This Product Does

The EGON DC-Hub 48V provides the central connection point for the system.

It is designed to help:

- Organise the main 48V system connections
- Reduce wiring complexity
- Support a clearer installation process
- Improve serviceability and fault-finding
- Keep the core system layout consistent from vehicle to vehicle

What’s Included

EGON DC Hub 48 Volt package, including:

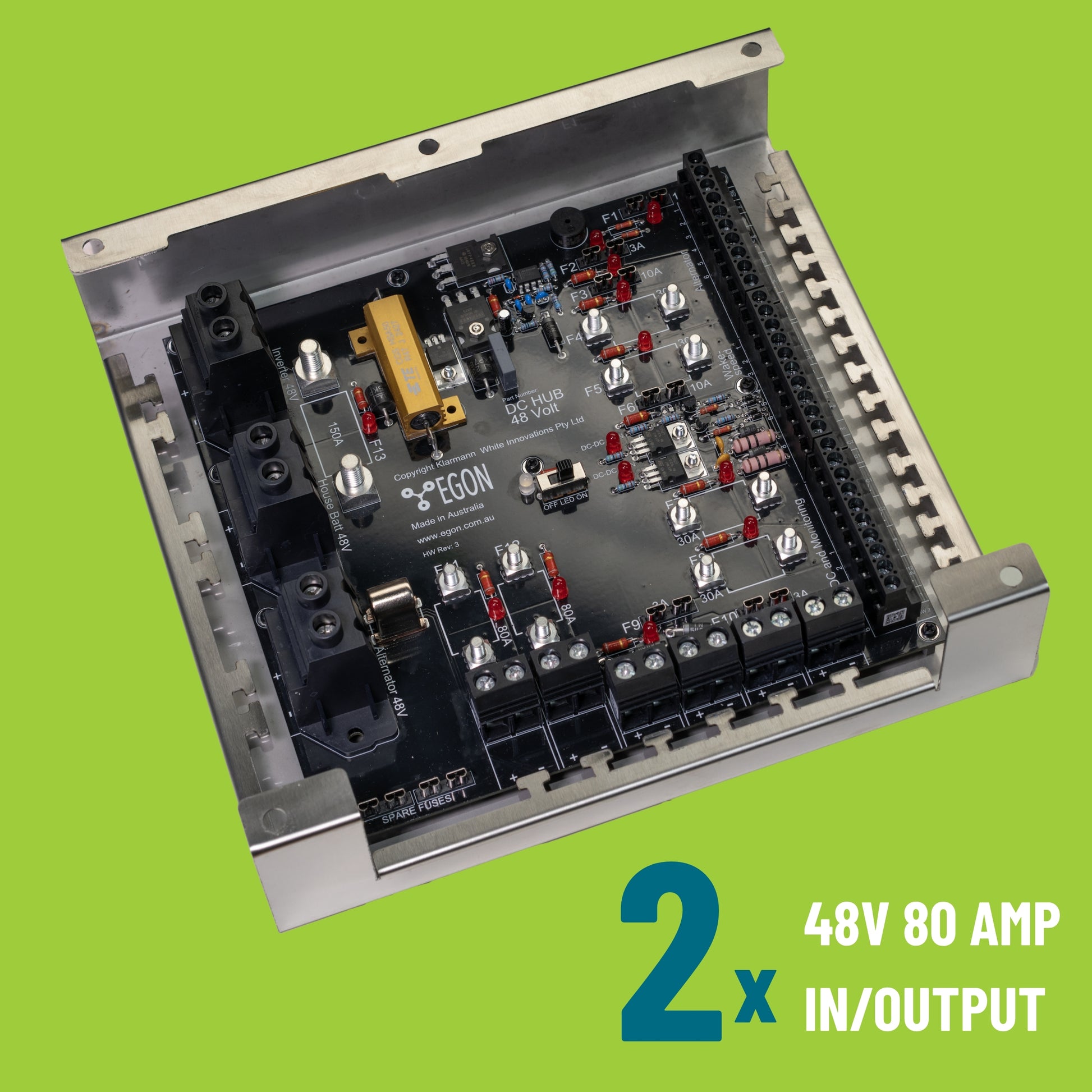

- Circuit board
- Bracket
- Cover
- Fasteners

Important System Note

The DC-Hub 48V is not a complete 48V system by itself.

It is the central hub that connects and organises the broader system. Before ordering, review the 48V System Components and Partner Packages tabs to understand the other products required for a functional installation.

The Result

A clearer, more repeatable 48V vehicle power architecture that is easier to install, easier to understand and easier to maintain.

Voltage	12V / 24V / 48V compatible

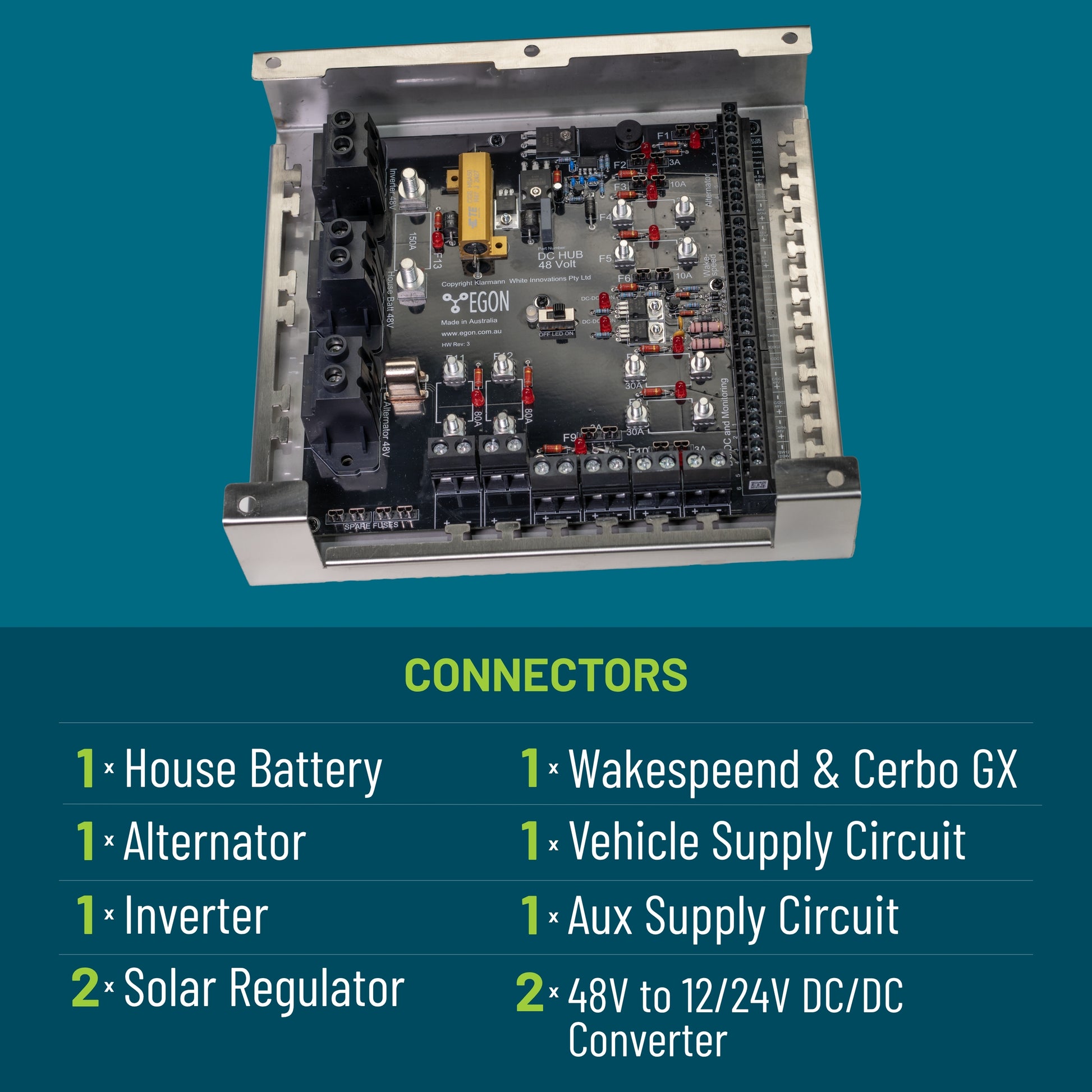

Inputs

Wakespeed Harness Connector	Multiple Connections
12V/24V DC/DC Converter Override	2 x 1A max
12V/24V Vehicle Accessory Circuit	3A max
48V Alternator	1 x 150A max
48V Regulated Solar	2 x 30A max
48V Aux Battery	150A max

Outputs

Alternator Control Circuit	Multiple Connections
12V/24V Override Switch Supply	2 x 3A max
48V DC/DC Converter Supply	2 x 30A max
48V Alternator Field Supply	1 x 10A max
48V Cerbo GX Supply	3A max
48V Inverter	150A max
48V General Purpose Outputs	2 x 80A max
Aux 12V/24V Supply Circuit	100A max
Start Battery 12V/24V Supply Circuit	100A max

Other

Dimensions (Packaged)	8 x 33 x 26 cm (H x L x W)

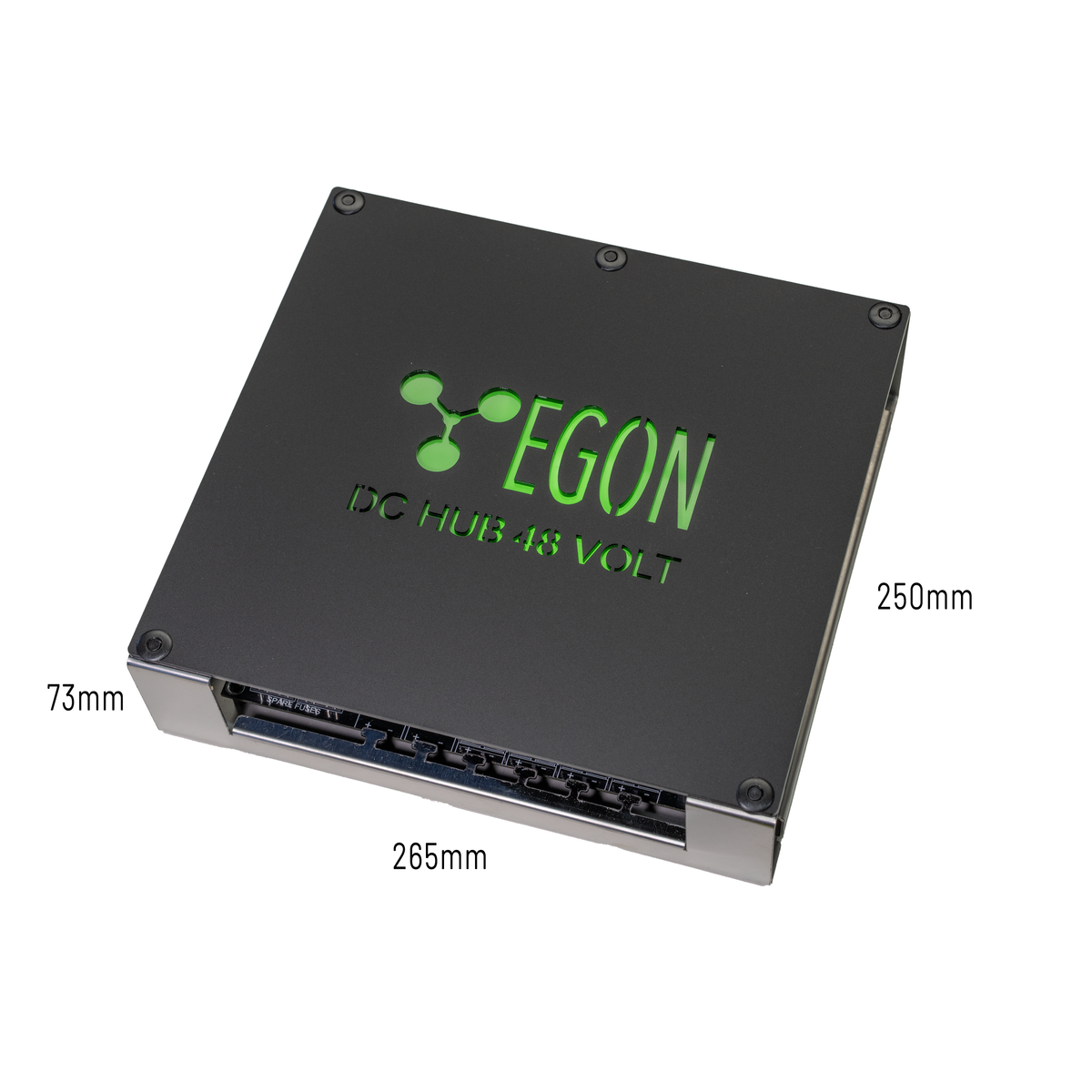

Dimensions (Product)	7.5 x 26.5 x 25 cm (H x L x W)
Warranty	4 Years

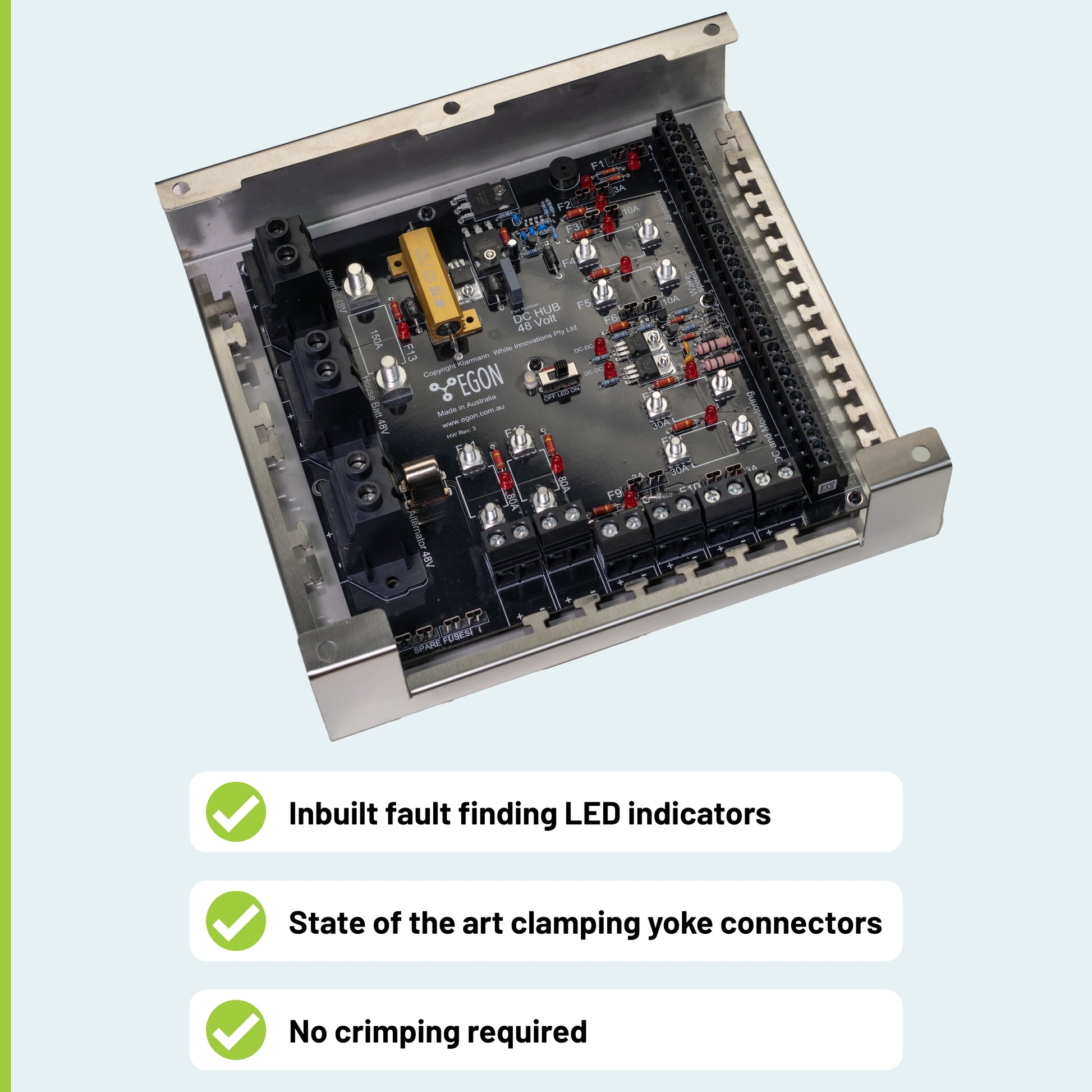

Fuse Indicators	Red LED per blown fuse

Overview

48V System Components

The EGON DC-Hub 48V is the centre of the system, but it is not the whole system.

A functional EGON 48V setup generally requires:

- A compatible 48V alternator
- Alternator control via the Wakespeed / Victron partner package
- A 48V battery
- One or more 48V to 12V or 24V DC/DC converters
- The EGON DC-Hub 48V as the central connection and protection point
- Vehicle-specific fitment hardware where required

Use this section as a guide to the main EGON system components that may be required for a complete 48V installation.

Availability note

Some linked 48V system components are currently available for Australian orders only.

International customers should contact support@egon.com.au before ordering so EGON can confirm availability, freight and suitability.

Core EGON 48V System Components

1. EGON DC-Hub 48V

The DC-Hub 48V brings the main 48V system components together into one organised architecture. It acts as the central connection and protection point for the system.

This is the product you are currently viewing.

2. 48V Alternator

A compatible 48V alternator is required for high-output vehicle charging. EGON offers vehicle-specific 48V alternator options, and the correct option depends on the vehicle platform and mounting requirements.

View the 48V Alternators

Note: 48V alternators are currently available for Australian orders only.

3. 48V Battery

A 48V battery is required to store energy for the system. EGON’s current battery option is the EGON 48V Certified 105Ah LiFePO4 Battery.

View the EGON 48V Certified 105Ah LiFePO4 Battery

Note: this battery is currently available for Australian orders only.

4. 48V to 12V or 24V DC/DC Converter

Many 48V systems still need lower-voltage DC power for existing vehicle accessories, auxiliary systems, or camper systems. EGON offers DC/DC converter options for stepping the 48V system down to either 12V or 24V output.

Available converter options:

- 48V to 13.8V, 100A
- 48V to 27.6V, 70A

View the EGON 48V DC/DC Converters

Some setups may require more than one converter, depending on how the vehicle and auxiliary systems are configured.

5. Alternator control and monitoring

The 48V alternator requires suitable control and monitoring hardware. See the Partner Packages tab for the Wakespeed / Victron package used with the EGON 48V architecture.

View the Wakespeed / Victron 48V Control Kit

Note: this kit is currently available for Australian orders only.

6. Mounting and fitment hardware

Some vehicles may require specific alternator mounting or fitment hardware. Vehicle compatibility and mounting requirements should be confirmed before ordering.

Important compatibility note

Not every customer will need the same combination of components.

The correct setup depends on:

- Vehicle type
- Alternator fitment
- Battery selection
- Required 12V or 24V output
- Installation method
- Partner control and monitoring requirements

If you are unsure which components are required for your setup, contact EGON before ordering.

Specifications

Voltage	12V / 24V / 48V compatible

Inputs

Wakespeed Harness Connector	Multiple Connections
12V/24V DC/DC Converter Override	2 x 1A max
12V/24V Vehicle Accessory Circuit	3A max
48V Alternator	1 x 150A max
48V Regulated Solar	2 x 30A max
48V Aux Battery	150A max

Outputs

Alternator Control Circuit	Multiple Connections
12V/24V Override Switch Supply	2 x 3A max
48V DC/DC Converter Supply	2 x 30A max
48V Alternator Field Supply	1 x 10A max
48V Cerbo GX Supply	3A max
48V Inverter	150A max
48V General Purpose Outputs	2 x 80A max
Aux 12V/24V Supply Circuit	100A max
Start Battery 12V/24V Supply Circuit	100A max
