EGON 48V Certified 105Ah LiFePO4 Battery

EGON 48 Volt Certified 105Ah / 100A LiFePO4 Metal Vented BluEdge battery with
Bluetooth and data comms, Active Balancing + Comm Cables

Part of the EGON 48V System

This battery is designed as part of the EGON 48V system. If you are planning a full 48V setup, review the EGON DC-Hub 48V page and related system components before ordering.

TO BUILD an operational 48V system you will need the following products. In this list, only the alternator and battery are optional should you prefer to source them elsewhere. Other branded DC-DC converters or alternator controllers are NOT compatible with the Egon 48V hub.

• Egon 48V Hub. BUY NOW

• 48V Alternator. SELECT ONE HERE
• 48V DC-DC Converter. YOU'LL NEED TWO
• Alternator Control kit. BUY NOW

• 48V battery. BUY NOW

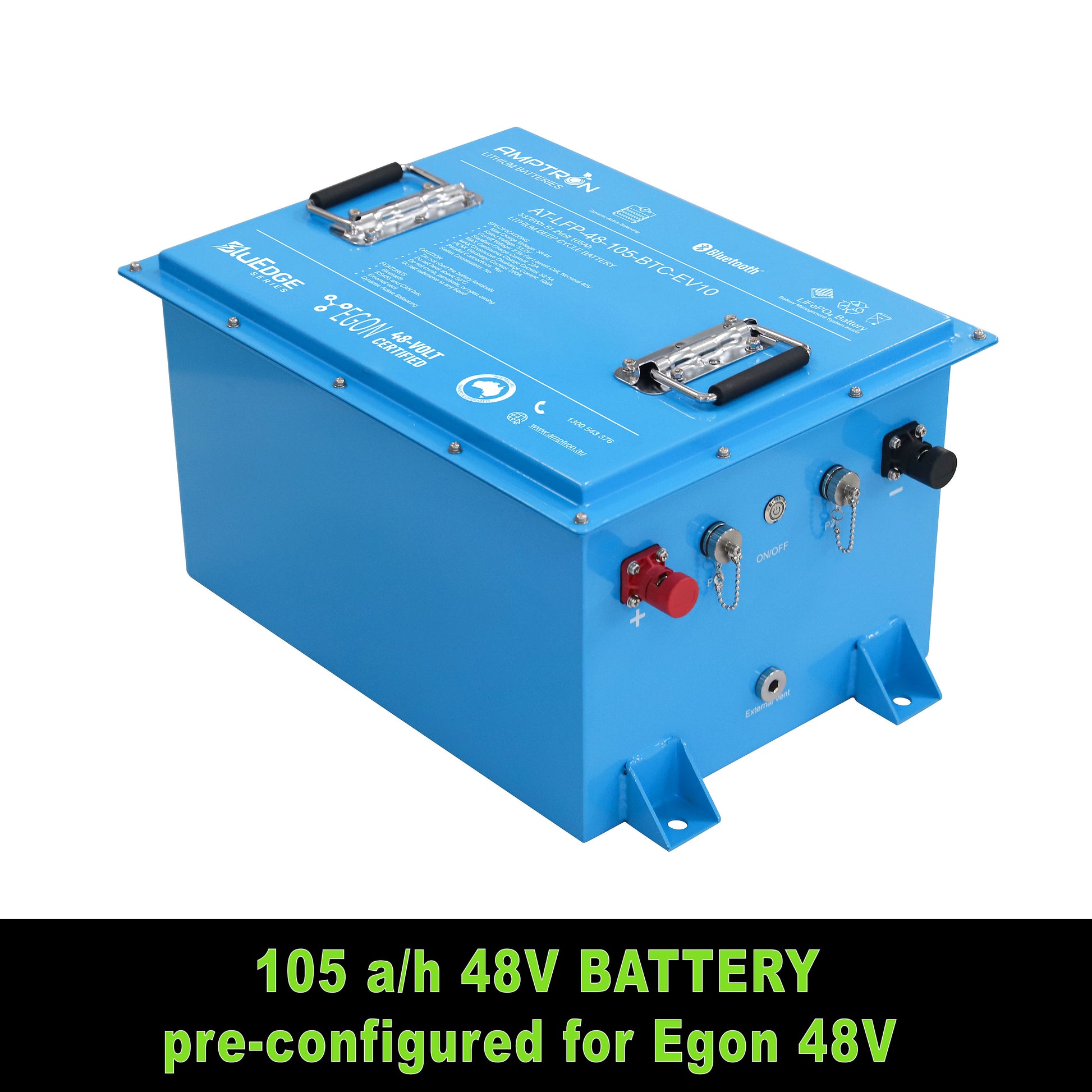

48V Battery Overview

The EGON 48V Certified 105Ah LiFePO4 Battery is a 48V system battery designed for use within the EGON 48V architecture. This unit includes Bluetooth, data communications, active balancing, and communication cables.

Egon Certified batteries have been pre-balanced before delivery.

1. If you wish to instal the Egon 48V architecture while supplying your own battery, this is IMPORTANT.

2. The 48V battery or battery bank needs to be able to accept a charge rate of 100A. If it can only accept a lower charge rate, then the system can be 'dialled back' to reduce the charge current rate.
3. In a new installation, pre balancing of the battery is VERY IMPORTANT. Pre-balance your battery by pre-charging to 100%, and then leave them turned on, but NOT connected for a minimum of 24 hours. This allows the internal BMS to balance and equalise all cells in that battery. Only then connect to the system and continue your installation.

What's Included

• EGON 48V Certified 105Ah LiFePO4 Battery
• Communication cables

Key Specifications

• Voltage: 48V
• Capacity: 105Ah
• Current: 100A
• Chemistry: LiFePO4
• Construction: Metal vented BluEdge battery
• Connectivity: Bluetooth and data communications
• Balancing: Active balancing
• Dimensions: 525 x 350 x 270 mm
• SKU: AT-EGON-48-105-BTC-KIT
• Weight: 46.8 kgs

Other slim-line (narrow) 48V Egon-compatible batteries are under development.

Shipping & Availability

This product is currently available for Australian orders only. No international orders are available for Egon alternators or batteries. Apart from the these, a full 48V system can be ordered internationally. The battery must be 48V LifePO4 with a charge rate of 100A or more, and have suitable compatible communication protocols. Details below.

International customers should contact support@egon.com.au before ordering so EGON can confirm product availability, freight options and suitability for their 48V system.

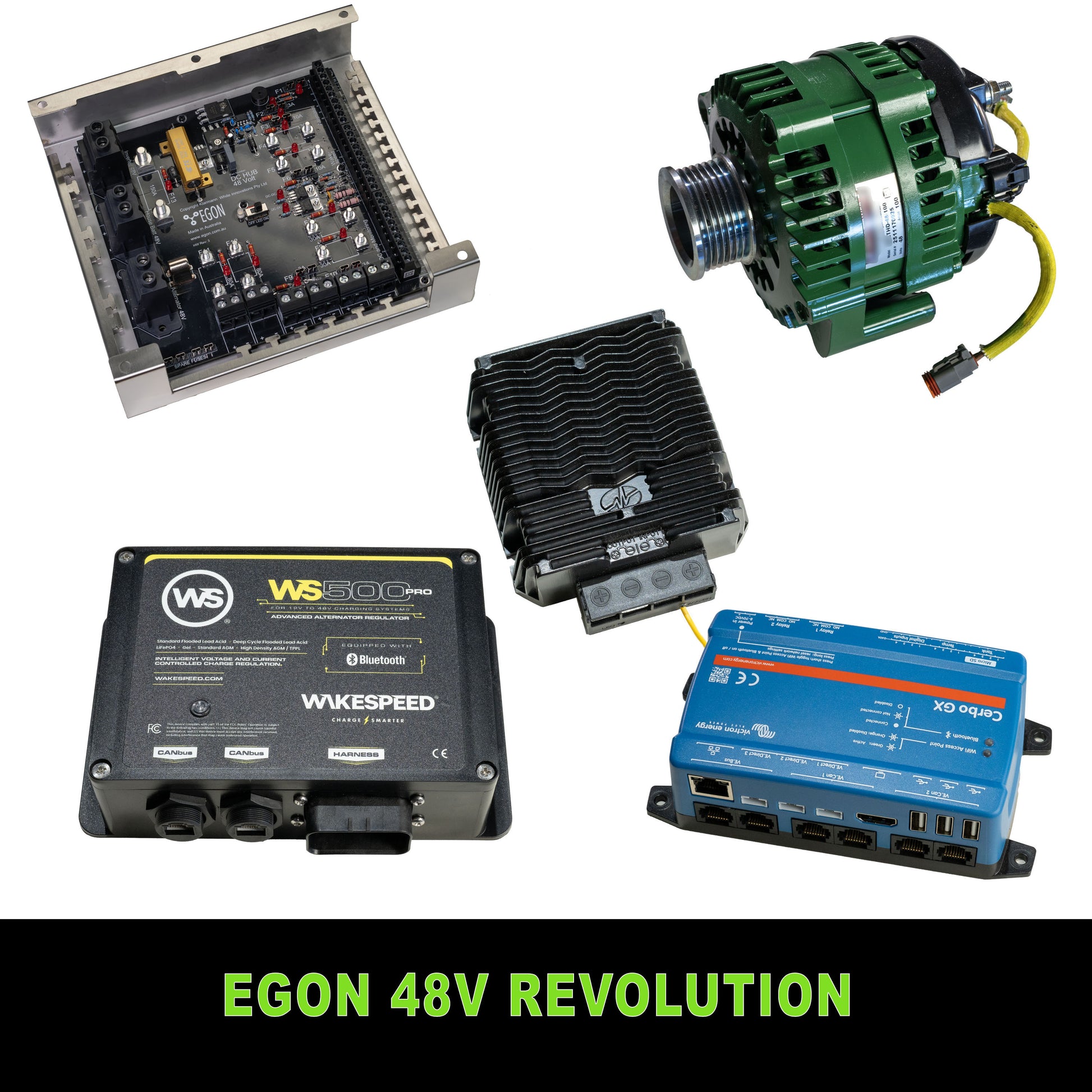

Related 48V System Components

This battery is one part of the EGON 48V system. You may also need the following components depending on your setup:

• EGON DC-Hub 48V
• EGON 48V DC/DC Converters
• 48V Alternators
• Wakespeed / Victron 48V Control Kit

Alternative Battery Compatibility & Warranty Requirements

To maintain valid warranty coverage for your Egon 48V Hub installation, the system must be installed using either:

1. An Egon Certified Battery, or

2. A battery featuring an equivalent and fully compatible communication protocol to an Egon Certified Battery.

Why Active Communication Is Required

The Egon 48V architecture relies on active CAN bus communication to ensure optimal performance, safety, and diagnostic capabilities. Without compatible closed-loop communication, critical battery parameters—including cell-level monitoring, individual cell balance, and temperature control—cannot be monitored by the system.

Active CAN bus integration enables real-time fault detection and diagnostic alerts, which are displayed directly on the Cerbo GX screen in clear, plain-language text. This ensures system warnings or faults are immediately obvious to the user so corrective action can be taken before any system damage occurs.

Important: Failure to use an Egon Certified Battery or a battery with an equivalent communication protocol will void the manufacturer warranty on the Egon 48V Hub.
